Rosemount 2088 Pressure Transmitter
A compact, economical pressure transmitter for gauge and absolute measurement up to 4000 psi, supplied to Canadian process and manufacturing industry with duty-paid delivery.
Instrubiz sources genuine Rosemount 2088 transmitters for oil & gas and petrochemical process operations across Alberta, and manufacturing facilities across Ontario.
Competitive Pricing
Genuine components, fair market rates
Efficient Lead Times
Clear stock & delivery communication
Duty-Paid Delivery
Door-to-door across Canada, no surprises
Rosemount 2088 Pressure Transmitter Overview
Compact Pressure Measurement for Gauge and Absolute Applications

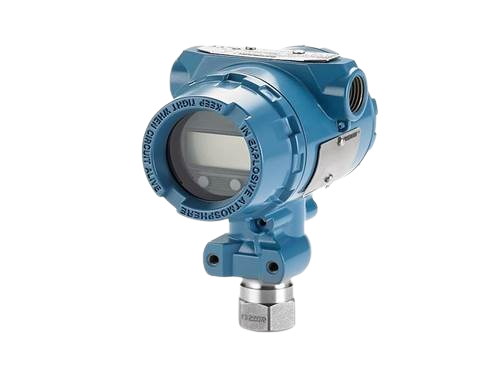

The Rosemount 2088 Pressure Transmitter is a small, compact single-piece transmitter that connects directly to the process, without a separate sensor housing or coplanar flange, for a quick, low-cost installation. It uses a solid-state polysilicon pressure sensor and is built for applications where value is the priority over the diagnostics and multi-configuration flexibility of Rosemount’s larger platforms.
It measures absolute or gauge pressure up to 4000 psi with an accuracy of plus or minus 0.10 percent, and includes external push-button zero and span adjustment plus an optional integral manifold for a further simplified installation. Wetted parts are available in 316L stainless steel or Hastelloy C-276 for corrosive service.
Output uses Smart communications with HART protocol available through an optional converter, and the 2088 is suited to almost any line pressure or tank level application where a compact, economical transmitter is the right fit rather than a premium multi-variable platform.
It measures absolute or gauge pressure up to 4000 psi with an accuracy of plus or minus 0.10 percent, and includes external push-button zero and span adjustment plus an optional integral manifold for a further simplified installation. Wetted parts are available in 316L stainless steel or Hastelloy C-276 for corrosive service.
Output uses Smart communications with HART protocol available through an optional converter, and the 2088 is suited to almost any line pressure or tank level application where a compact, economical transmitter is the right fit rather than a premium multi-variable platform.
Sensing Principle
Solid-State Polysilicon Sensor
Measures
Absolute / Gauge Pressure
Reference Accuracy
±0.10%
Max Pressure Rating
Up to 4000 psi
Need pricing for the Rosemount 2088 Pressure Transmitter?
Rosemount 2088 Measurement Configurations
The two measurement configurations of the 2088 Pressure Transmitter
2088G
Rosemount 2088 Gauge Pressure Transmitter
Measures pressure relative to atmosphere through a compact, directly connected body, specified for line pressure and tank level applications where value is the priority.
2088A
Rosemount 2088 Absolute Pressure Transmitter
Measures pressure relative to a full vacuum through the same compact body, available up to 4000 psi.
Rosemount 2088 Pressure Transmitter Base Model Numbers
Rosemount 2088 Pressure Transmitter, base model numbers
Base model codes confirmed from Rosemount’s published ordering documentation.
| Model | Type | Status |
|---|---|---|
| Rosemount 2088G | Gauge Pressure | Available to Order |
| Rosemount 2088A | Absolute Pressure | Available to Order |
Applications
Rosemount 2088 Pressure Transmitter applications
Oil, Gas & Petrochemical
Line pressure and tank level monitoring where a compact, economical transmitter meets the application’s accuracy needs.
General Industrial Process
Almost any line pressure or tank level application, the 2088’s primary positioning.
Water & Wastewater
Line and tank level pressure monitoring across treatment and pumping stages.
Preventative Maintenance
A modest investment in reliable pressure measurement directly protects facility and equipment investments from unplanned breakdowns.
Replacement & Retrofit
A common, cost-effective replacement for older single-piece transmitters reaching end of service life.
Regions We Serve
Where Instrubiz Supports the 2088 in Canada
Alberta
Alberta’s oil sands and petrochemical facilities specify the 2088 for straightforward line pressure and tank level applications where a compact, economical transmitter is the right fit. Instrubiz supplies the gauge and absolute configurations Alberta operators need for both new installations and replacements.
Ontario
Ontario’s manufacturing and process facilities use the 2088 for general pressure and level monitoring across production and utility systems. Instrubiz supplies genuine 2088 transmitters with the technical background to help confirm the right configuration.
